Description

CURRENTLY AVAILABLE ON BACKORDER (10-12 WEEKS)

Static SWL of 500kg per arm

This kit includes:

• 4 x 4000x300x96mm Posts
• 4 x Single Sided Bases (to suit 1200mm arms)
• 16 x 1200mm Arms (2-degree angle)
• 3 x Bracing Kits (to suit 1800mm post centres) including fixings
• All fastenings required to construct rack

Key Features:

• Heavy duty 300 x 96mm post
• Durable hot dipped galvanised finish
• Industrial grade
• Arms adjustable in 76mm increments
• Safe working load capacity of 500kg per arm
• Post spacing options to suit your requirements
• Single and double sided options to suit your requirements

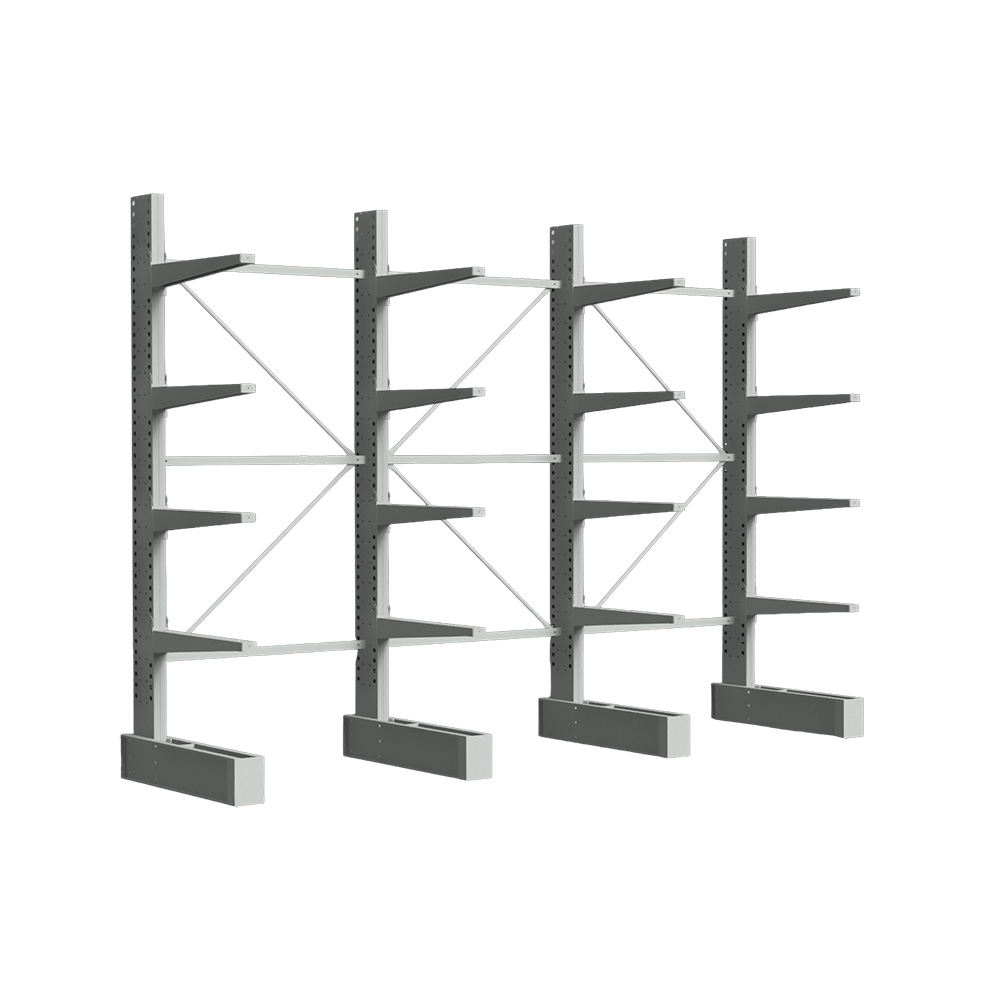

With this double sided 4 post rack, the overall height is 4000mm, the overall length is 5600mm and the overall depth is 1590mm.

The arms are 1200mm long and have a 2-degree slope to prevent product rolling off.

The arms are height adjustable in 75mm increments, this is done simply by removing the Arm Pin, adjusting to the required height, and replacing the Arm Pin.

The arms have a static safe working load capacity of 500kg per arm, giving this kit a static safe working load capacity of 2000kg per level.
