Description

CLICK HERE TO WATCH ASSEMBLY VIDEO

CLICK HERE TO DOWNLOAD SPEC SHEET

This kit includes:

• 1 x 2400*200*60mm Post
• 1 x Double Sided Base (to suit 600mm arms)
• 6 x 600mm Arms (2-degree angle)
• 6 x 90mm Arm Pins

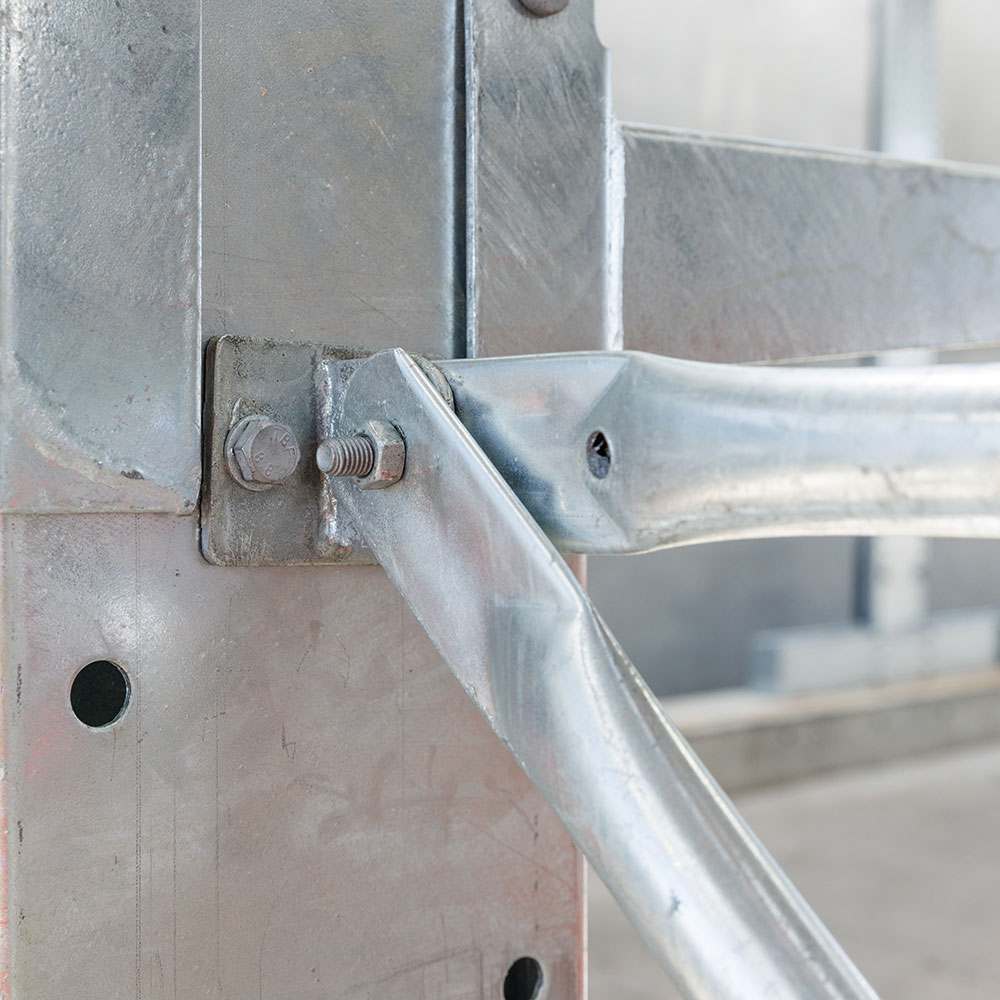

• 1 x Bracing Kit (to suit 900mm post centres) including fixings
• 8 x 200mm Slip Pins (for end of arm)
• 5 x M16 x 100mm base bolts and nuts

Key Features:

• Durable hot dipped galvanised finish
• Industrial quality
• Magnetic product protection strips
• Removable slip pins
• Arms adjustable in 100mm increments
• Safe working load capacity of 250kg per arm / 1200kg per post
• Post spacing options to suit your requirements
• Single and double sided options to suit your requirements

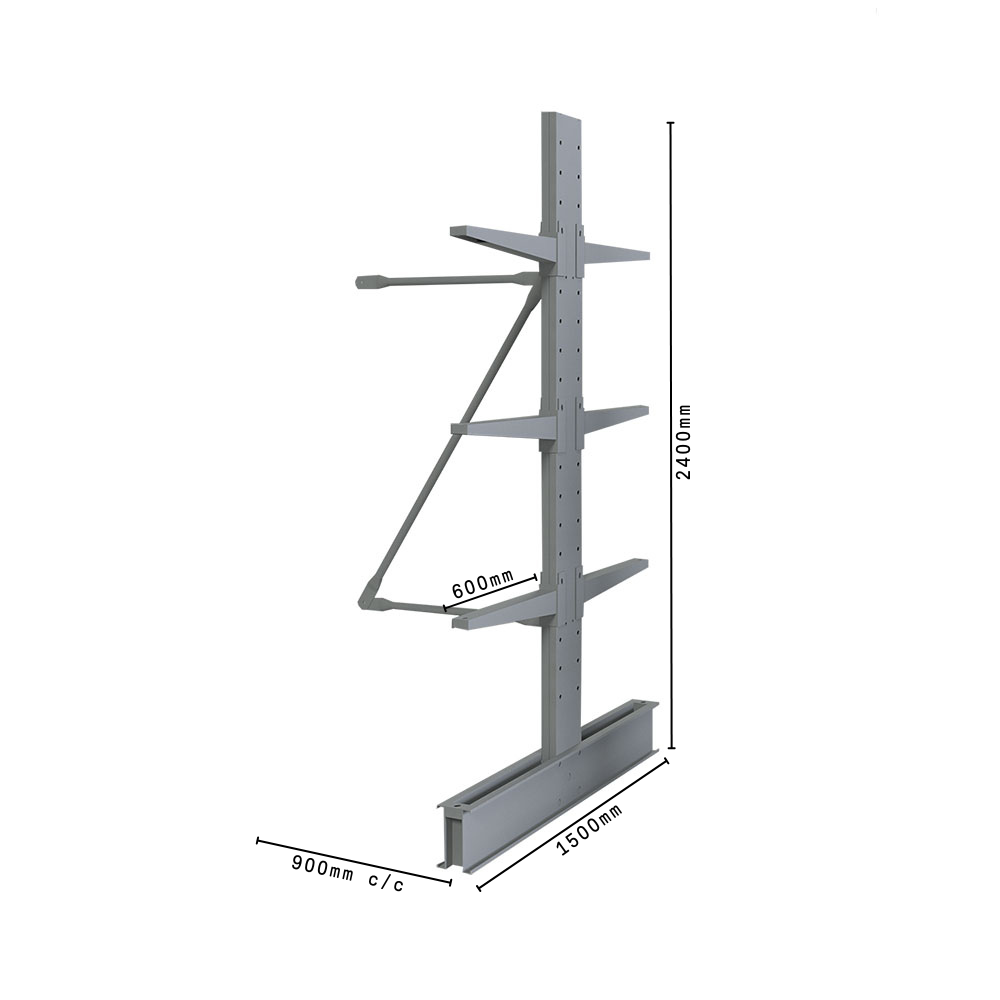

With this double sided addon bay, the overall height is 2400mm, the overall length is 930mm and the overall depth is 1500mm.

The arms are 600mm long and have a 2-degree slope to prevent product rolling off.

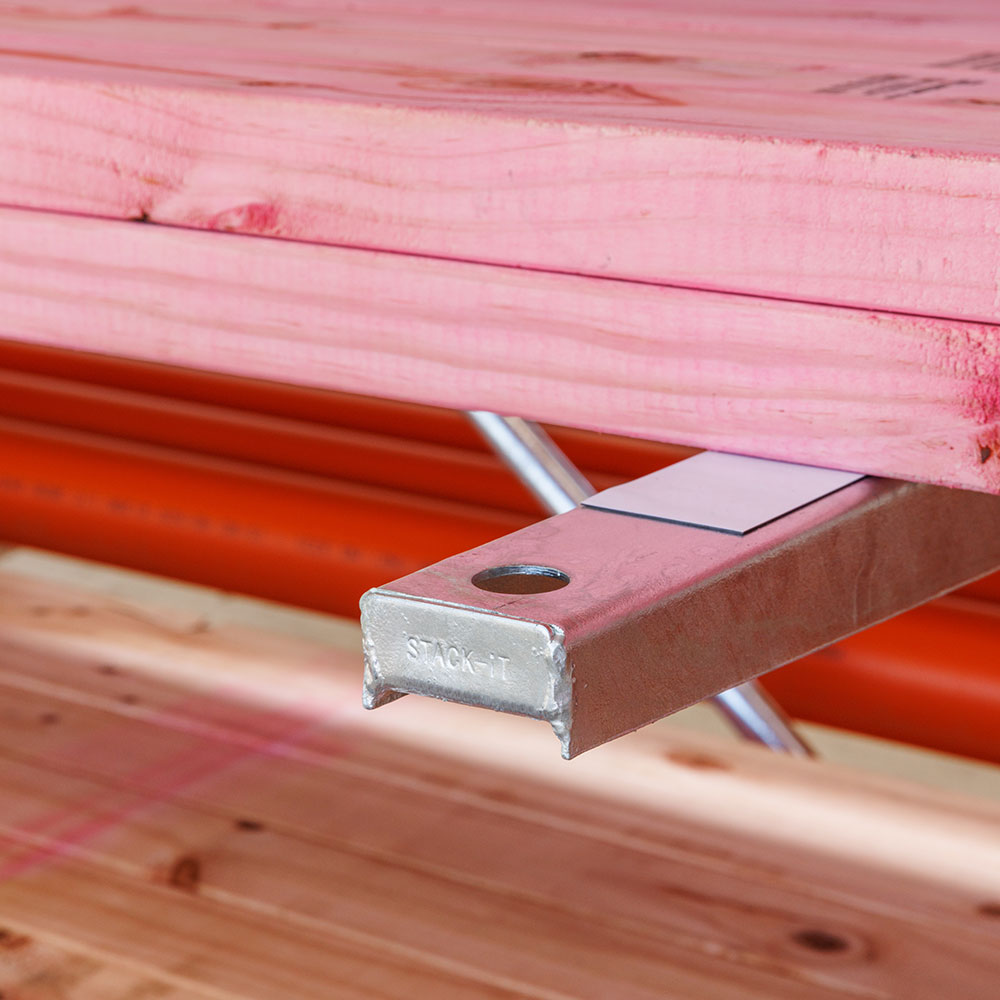

Each arm and base has a 200mm removable slip pin on the end to add further product protection.

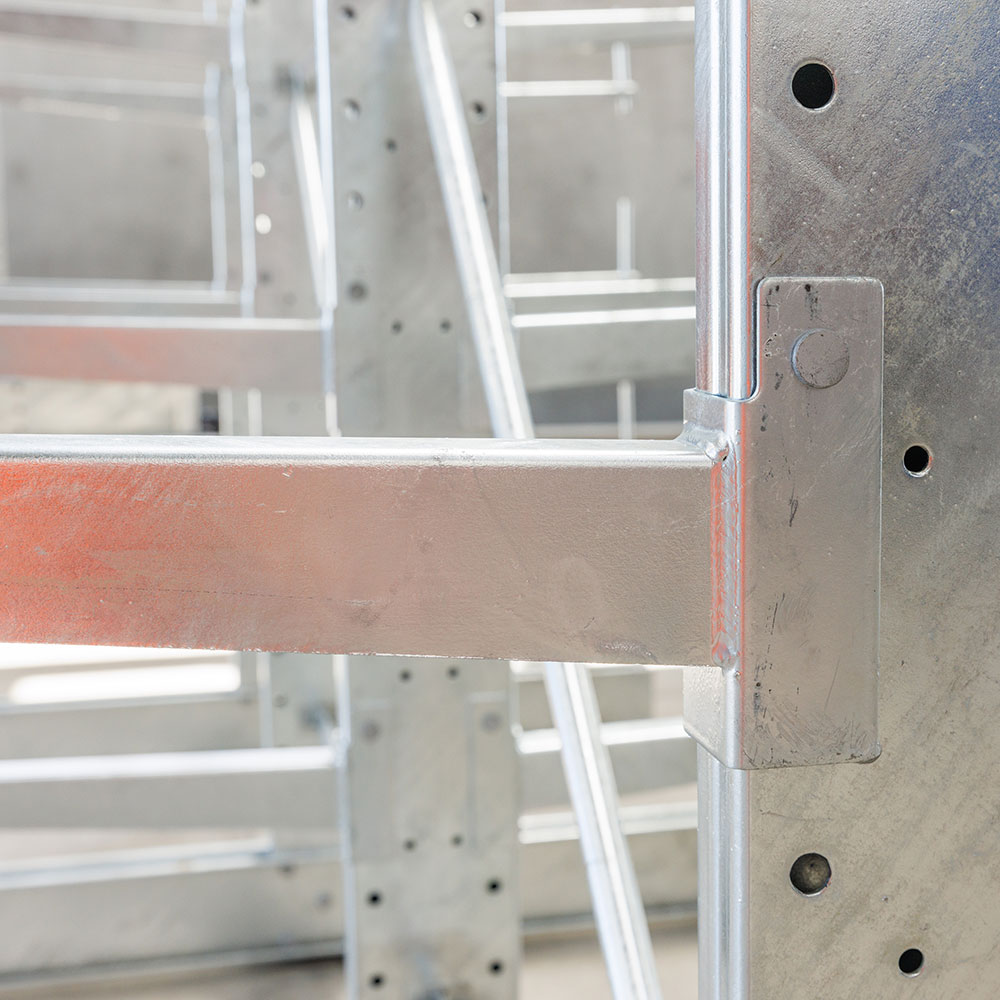

The arms are height adjustable in 100mm increments, this is done simply by removing the Arm Pin, adjusting to the required height, and replacing the Arm Pin.

The arms have a static safe working load capacity of 250kg per arm, giving this kit a static safe working load capacity of 500kg per level.

Starter Bay kits are available to purchase as well as additional arms if required.
